Standard Kiosks

Apex

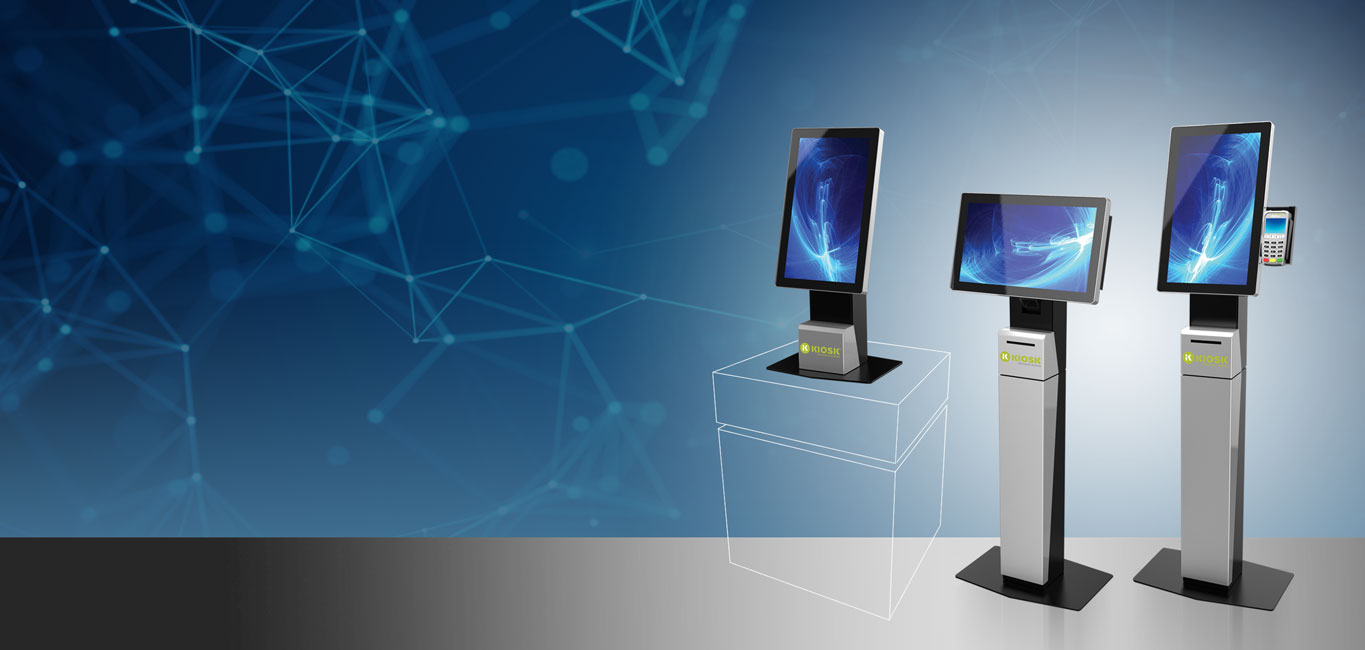

The Apex Series kiosk is a modular and flexible design available in a pedestal, counter, or wall mount footprint. Streamlined and modern design commonly deployed in hospitality, retail, and healthcare applications.

Why Apex?

Peak Flexibility & Efficiency

Download Brochure
Apex Model

Apex is a modular standard kiosk design series providing off-the-shelf enclosures that can accommodate a wide array of configurations. This design features a VESA mount LCD that can be configured for a 19-inch, or 21.5-inch LCD mounted in portrait or landscape presentation. Enclosure base options include a full-height pedestal for free-standing deployment, or a smaller base option for compact countertop installation needs.

The Apex combines a brilliant Projective Capacitive (PCAP) touch display paired with a flush-mounted PC, providing all-in-one space efficiency. The zero-bezel flush face and minimalist lines complement any retail or hospitality setting. Apex transaction component options include a side-mounted payment device (multiple), a receipt printer, and a 1D / 2D barcode scanner. All models are ADA Compliant.

All components in the Apex (except the preferred payment device) are manufactured by KIOSK’s Parent Company, Posiflex. Posiflex is World Leader in POS terminals and related componentry. They are best known for highly reliable devices with lifecycles that far exceed industry averages. Because the enclosure metals and components are self-supplied (and stocked), KIOSK can provide attractive pricing and lead-time on this popular design series.

Apex Countertop Model

Apex Countertop–19”or 21” Display

Apex Model

Apex Pedestal–19” or 21” Display

Apex Wall Mount Model

Apex Wall Mount–19” or 21” Display

Base Model Features

  • Durable power coated steel enclosure – pedestal or countertop
  • Base plate – pedestal or countertop
  • Posiflex KK2000 PC (J1900 processor), or Posiflex KK3000 PC (I3 or I5 processor)
  • PCAP display (19 or 21.5 inches). 15.6 and 32-inch display options coming soon (please inquire)

Optional Components

  • Insert or swipe credit card reader
  • Receipt printer
  • 1D/2D scanner

Enclosure Dimensions
19-Inch Pedestal Display:

  • Height portrait – 58.93” (inches)
  • Height landscape – 54.9”
  • Width portrait display* – 14.07”
  • Width landscape display* – 17.03”
  • Width – 20.28” at base plate
  • Depth – 14.18” at base plate

21.5-Inch Pedestal Display:

  • Height portrait – 62.6” (inches)
  • Height landscape – 54.5”
  • Width portrait display* – 13.12”
  • Width landscape display* – 21.36”
  • Width – 20.28” at base plate
  • Depth – 14.18” at base plate

19-Inch Countertop Display:

  • Height portrait – 28.27” (inches)
  • Height landscape – 24.24”
  • Width portrait display* – 14.07”
  • Width landscape display* – 17.03”
  • Width – 16” at base plate
  • Depth – 12” at base plate

21.5-Inch Countertop Display:

  • Height portrait – 31.94” (inches)
  • Height landscape – 31.54”
  • Width portrait display* – 13.12”
  • Width landscape display* – 21.36”
  • Width – 16” at base plate
  • Depth – 12” at base plate
  • *Does not include the width of side mounted card reader (varies, depending on selection)
